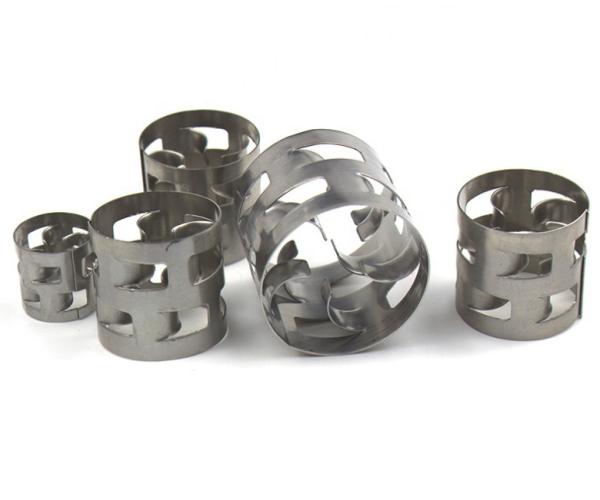

OEM 16mm Metal Random Packing Pall Ring 76mm Mini Tower

    Buy cheap OEM 16mm Metal Random Packing Pall Ring 76mm Mini Tower from wholesalers

    Buy cheap OEM 16mm Metal Random Packing Pall Ring 76mm Mini Tower from wholesalers
    • Buy cheap OEM 16mm Metal Random Packing Pall Ring 76mm Mini Tower from wholesalers

    OEM 16mm Metal Random Packing Pall Ring 76mm Mini Tower

    Ask Lasest Price
    Brand Name : Yuanqiao
    Model Number : Metal Intalox Saddles
    Certification : ISO9001
    Price : Negociation
    Payment Terms : L/C, T/T
    Supply Ability : 1000 pcs per month
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    OEM 16mm Metal Random Packing Pall Ring 76mm Mini Tower

    OEM 16mm Metal Random Packing Pall Ring 76mm Mini Tower

    OEM 16mm Metal Random Packing Pall Ring 76mm Mini Tower

    Description
    Name:OEM Metal Pall Ring 16mm 76mmMaterial:All
    Shape:Round, Ring,mini TowerOEM:Yes
    Feature:High Capacity, Low Pressure DropApplication:Industrial, As Tower Packing,metal Tower Packing, Industrial,etc.
    Product Group:Metal Random PackingSample:Sample Provided
    Size:15#, 25#, 40#, 50#, Etc.
    High Light:

    Metal Random Packing Pall Ring

    ,

    Mini Tower Metal Random Packing

    ,

    76mm Metal Random Packing


    OEM Metal Pall Ring 16mm 76mm


    1. Stainless Steel 304 Saddle Rings Advantage:


    Yuanqiao offers high performance metal tower packing, including structured packing and random packing. Among this group, metal saddle ring can be effectively used in both high pressure and vacuum tower services, delivering superior performance over traditional pall ring random packing. Other benefits can be expected like lower pressure drop, higher efficiency, less liquid hold up, etc..

    Other advantages of Hualai metal random packing include a large effective surface area, higher mechanical strength and a competitive cost. Hualai metal random packing is available in a group of sizes and materials so whatever the need may be, Hualai has the solution for the best efficiency and pressure drop. As per request, Hualai metal random packing is available in the most commonly used metal alloys such as 410, 304, 316L and other common alloys.


    2. Stainless Steel Saddle Ring Options:


    The following five sizes are available in 304 SS for data reference– 25mm (1”), 40mm (1 1/2”), 50mm (2”), 60mm (2 3/8”) and 70mm (2 3/4”).


    3.Main features: small flow resistance, uniform liquid distribution, high mass transfer efficiency and large gas flux Application scope: it can provide gas-liquid distribution transmission efficiency. It is suitable for carbon dioxide degassing tower, ozone contact reaction tower, etc. as contact packing and other reaction towers


    25mm Stainless Steel 304 Saddle Ring:

    Nominal size25 mm saddle rings
    Thickness0,3 mm
    Weight228 kg/m³
    Surface area235 m²/m³
    Void fraction97 %
    Materialstainless steel
    Available materialcarbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request

    40mm Stainless Steel 304 Saddle Ring:

    Nominal size40 mm saddle rings
    Thickness0,4 mm
    Weight241 kg/m³
    Surface area170 m²/m³
    Void fraction97 %
    Materialstainless steel
    Available materialcarbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request

    50mm Stainless Steel 304 Saddle Ring:

    Nominal size50 mm saddle rings
    Thickness0,4 mm
    Weight158 kg/m³
    Surface area115 m²/m³
    Void fraction97 %
    Materialstainless steel
    Available materialcarbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request

    60mm Stainless Steel 304 Saddle Ring:

    Nominal size60 mm saddle rings
    Thickness0,4 mm
    Weight127 kg/m³
    Surface area90 m²/m³
    Void fraction98 %
    Materialstainless steel
    Available materialcarbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request

    70mm Stainless Steel 304 Saddle Ring:

    Nominal size70 mm saddle rings
    Thickness0,5 mm
    Weight116 kg/m³
    Surface area67 m²/m³
    Void fraction98 %
    Materialstainless steel
    Available materialcarbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request

    In Yuanqiao we understand the importance of timeliness and quality for all plant operations.

    Yuanqiao factory serves local, domestic and international partners all with the same strategic purpose - reliable quality, partnership attitude and attention to details.
