    Distillation Column Metal Structured Packing 400-100mm 350X

    Ask Lasest Price
    Brand Name : Yuanqiao
    Model Number : YQ-116
    Certification : ISO9001
    Price : Negociation
    Payment Terms : L/C, T/T
    Supply Ability : 1000 pcs per month
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    Distillation Column Metal Structured Packing 400-100mm 350X

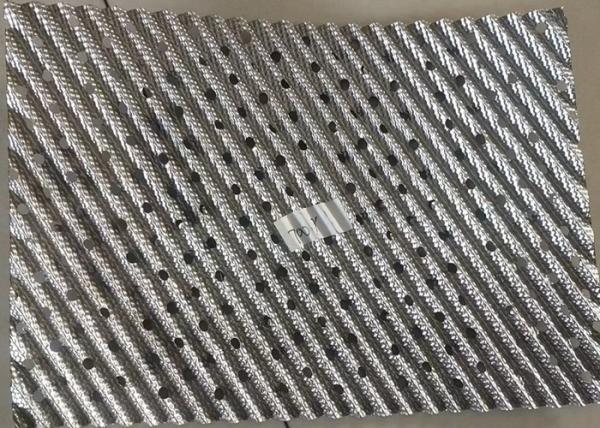

    Yuanqiao Metal Structured Packing 400 - 100mm 350X Ready For Quality Checking


    Yuanqiao Metal Structured Packing 400 - 100mm 350X Ready For Quality Checking

    Description
    Material:SS316LSurface Area:500 M2
    Height:100mm Each LayerSize:300mm In Diameter
    Surface Treatment:Perforation, CorrugationOEM:Available
    High Light:

    wire mesh packing

    ,

    stainless steel packing


    Yuanqiao Metal Structured Packing 400 - 100mm 350X Ready For Quality Checking


    In addition to random tower packings and mass transfer trays, structured packings represent another group of products that are used in the field of mass and heat transfer processes.

    Hualai provides a broad range of innovative and conventional structured packings in both metal sheet and wire mesh materials for different applications.


    The typical application fields for metal structured packings are processes with following operating conditions:

    low irrigation densities high gas loads; low pressure drop requirement high demand of transfer units

    These operating conditions are common in many vacuum distillation and rectification processes in the chemical and petrochemical industry, as well as in amine scrubbers, C3-, C4-splitters and applications in the field of fine chemicals.

    Yuanqiao structured packings are available in different specific surface areas and corrugation angles as well as in several finishing varieties:

    smooth or textured surface perforated or unperforated

    X (30°) or Y (45°) corrugation angles

    standard or high-capacity corrugation geometry

    0.1 or 0.15 mm metal sheet thickness

    materials: carbon steel, stainless steel, others on request


    Structured packing provides a large surface area per unit volume, which maximizes mass transfer performance and creates a lower pressure drop than conventional distillation trays. By reducing the pressure drop, structured packing increases energy efficiency. Together with our structured packing, we use our own demister / mist eliminators to maximize column performance.

    Around the world, we have deployed our structured packing in chemical processing, steel, gas-to- liquid (GTL), gasification and a wide variety of other applications.


    Yuanqiao structured packing products list (part):


    TypeSurface areaVoid fractionWave heightNtΔPMax.F-factor
    m2/m3%mmm-1Pa/mm/s.(kg/m3)0.5
    125 X/Y1259825.41-21503
    250 X/Y2509712.52-32002.6
    350 X/Y3509492.0-2.53002
    500 X/Y500926.34-54001.8
    700 X/Y700854.55-76501.6
